Forced E-Waste PCs And The Case Of Windows 11’s Trusted Platform

May 29, 2025 by 145 Comments

Until the release of Windows 11, the upgrade proposition for Windows operating systems was rather straightforward: you considered whether the current version of Windows on your system still fulfilled your needs and if the answer was ‘no’, you’d buy an upgrade disc. Although system requirements slowly crept up over time, it was likely that your PC could still run the newest-and-greatest Windows version. Even Windows 7 had a graphical fallback mode, just in case your PC’s video card was a potato incapable of handling the GPU-accelerated Aero Glass UI.

This makes a lot of sense, as the most demanding software on a PC are the applications, not the OS. Yet with Windows 11 a new ‘hard’ requirement was added that would flip this on its head: the Trusted Platform Module (TPM) is a security feature that has been around for many years, but never saw much use outside of certain business and government applications. In addition to this, Windows 11 only officially supports a limited number of CPUs, which risks turning many still very capable PCs into expensive paperweights.

Although the TPM and CPU requirements can be circumvented with some effort, this is not supported by Microsoft and raises the specter of a wave of capable PCs being trashed when Windows 10 reaches EOL starting this year.

Continue reading “Forced E-Waste PCs And The Case Of Windows 11’s Trusted Platform” →

The TPM module that Viktor designed, inserted into the motherboard

TPM Module Too Expensive? DIY Your Own Easily!

May 4, 2022 by 83 Comments

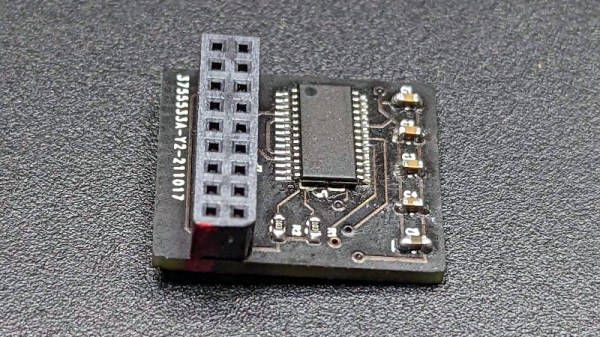

Since Windows 11 has announced its TPM module requirement, the prices for previously abundant and underappreciated TPM add-on boards for PC motherboards have skyrocketed. We’ve been getting chips and soldering them onto boards of our own design, instead – and [viktor]’s project is one more example of that. [Viktor] has checked online marketplace listings for a TPM module for his Gigabyte AORUS GAMING 3 motherboard, and found out they started at around 150EUR – which is almost as much as the motherboard itself costs. So, as any self-respecting hacker, he went the DIY way, and it went with hardly a hitch.

Following the schematic from the datasheet, he quickly made a simple KiCad layout, matching it to the pinout from his motherboard’s user manual, then ordered the boards from PCBWay and SLB9665 chips from eBay. After both arrived, [viktor] assembled the boards, and found one small mistake – he designed a module for 2.54mm pin headers, but his motherboard had 2.0mm headers. He wired up a small adapter to make his assembled V1.0 boards work, and Windows 11 installed without any TPM complaints. He shows that he’s designed a new, V1.1 version with an updated connector, too, and published its (untested but should work) design files for us on GitHub. These modules can vary, by manufacturer and motherboard series, but with each module published, a bunch of hackers can save money – and get a weekend project virtually guaranteed to work out.

Regardless of whether the goal of running Windows 11 is ultimately worthwhile, it has been achieved. With scalpers preying on people who just want to use their hardware with a new OS, rolling your own TPM PCB is a very attractive solution! Last time we covered a DIY TPM module for ASrock server motherboards, we had a vivid discussion in the comments, and if you’re looking to create your own TPM board, you could do worse than checking them out for advice and insights!

Build A TPM Module For Your Server

April 6, 2022 by 60 Comments

One of the big stories surrounding the announcement of Windows 11 was that it would require support for TPM 2.0, or Trusted Platform Module, to run. This takes the form of an on-board cryptographic processor, which Microsoft claims will help against malware, but which perhaps more importantly for Redmond, can be used to enforce DRM.  Part of the standard involves a hardware module, and [Zane] has built a couple of them for ASrock server motherboards.

The chip in question is the Infineon SLB9965, which with a bit of research was found to map more or less directly to the pins of the TPM socket on the motherboard. The interesting thing here lies in the background research it gives into TPMs, and furthermore the links to other resources dealing with the topic. The chances are that most readers needing a TPM will simply buy one, but all knowledge is useful when it comes to these things.

Our weekly security roundup has been keeping an eye on the use of TPMs for a while, and has even shown us some ways that people have used to bypass the modules.

The CryptoCape For BeagleBone

July 20, 2014 by 14 Comments

[Josh Datko] was wandering around HOPE X showing off some of his wares and was kind enough to show off his CryptoCape to us. It’s an add on board for the BeagleBone that breaks out some common crypto hardware to an easily interfaced package.

On board the CryptoCape is an Atmel Trusted Platform Module, an elliptic curve chip, a SHA-256 authenticator, an encrypted EEPROM, a real time clock, and an ATMega328p for interfacing to other components and modules on the huge prototyping area on the cape.

[Josh] built the CryptoCape in cooperation with Sparkfun, so if you’re not encumbered with a bunch of export restrictions, you can pick one up there. Pic of the board below.

Continue reading “The CryptoCape For BeagleBone” →

TPM Crytography Cracked

February 9, 2010 by 36 Comments

Trusted Platform Module based cryptography protects your secrets as well as your government’s secrets.  Well, it used to. [Christopher Tarnovsky] figured out how to defeat the hardware by spying on its communications. This requires physical access so it’s not quite as bad as it sounds, but this does reach beyond TPM to many of the security chips made by Infineon.  This includes peripheral security chips for Xbox 360 and some chips used in cell phones and satellite TV.

[Christopher] revealed his hack during his presentation at Black Hat 2010. The method is wicked-hard, involving removal of the chip’s case and top layer, then tapping into a data bus to get at unencrypted data. The chip still has some tricks up its sleeve and includes firmware traps that keep a look out for this type of attack, shutting down if it’s detected. Infineon commented that they knew this was possible but regard it as a low threat due to the high skill level necessary for success.
